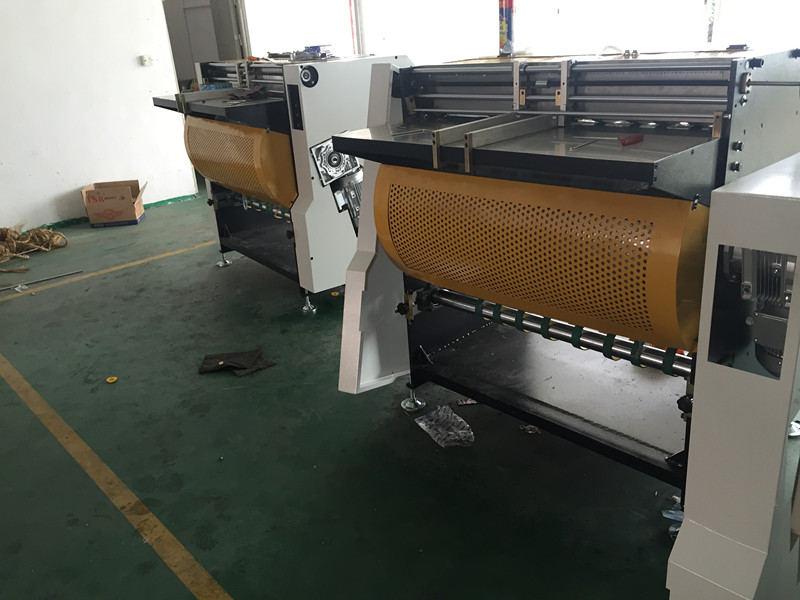

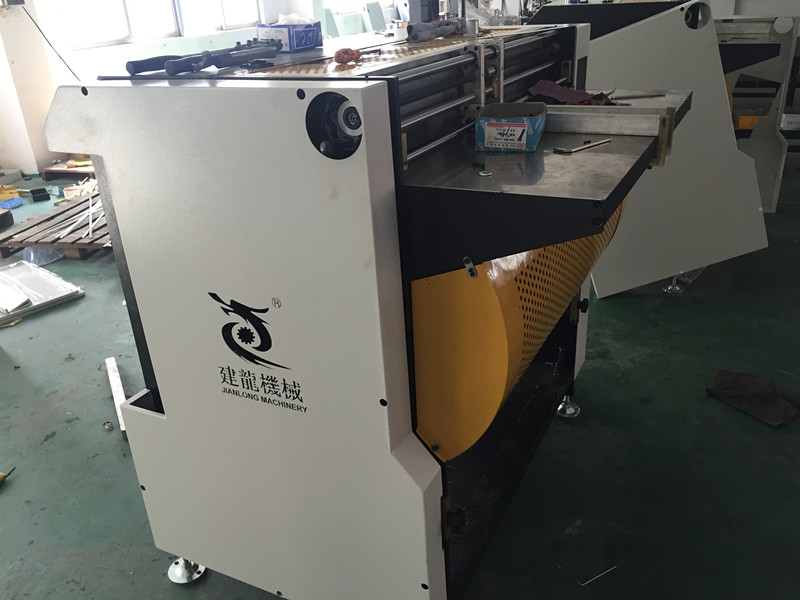

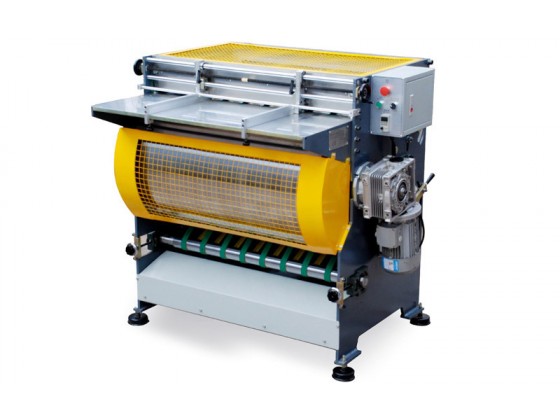

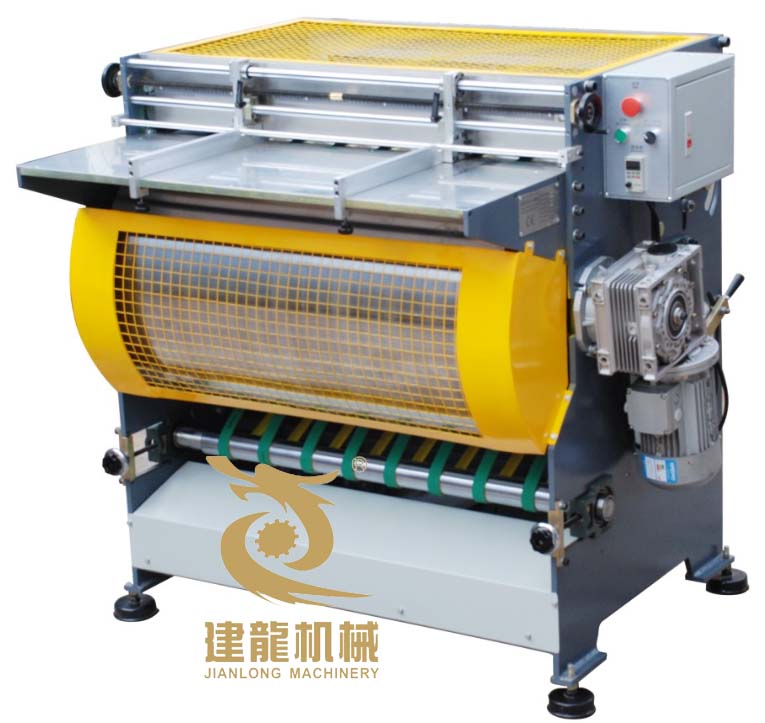

JL-1200A無塵開槽機
JL-1200A無塵開槽機
Semi-automatic Dust-proof Slotting Machine

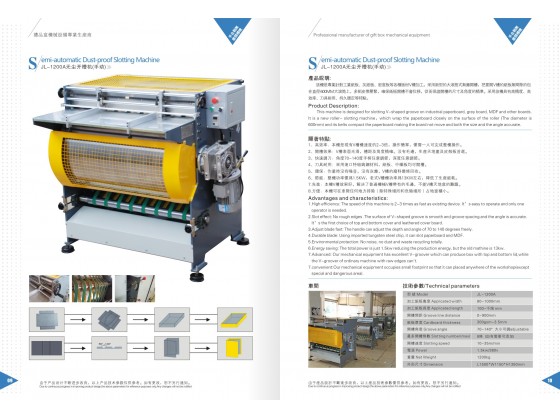

一、產品簡介： Product brief introduction
該機是專業針對工業紙板、灰紙板、密度板等各種板材V槽加工。采用新型的大滾筒式無塵開槽，把要開V槽的紙板無間隙的包在直徑600MM大滾筒上，多組皮帶壓緊，確保紙板開槽不會位移，從而保證開槽的尺寸及角度的精準。采用該機具有高精度、高效率、刀具耐用、持久穩定等特點。
This machine is designed for slotting V-shaped groove on industrial paperboard, grey board, MDF and other boards. It is a new roller- slotting machine，which wrap the paperboard closely on the surface of the roller (The diameter is 600mm) and its belts compact the paperboard making the board not move and both the size and the angle accurate.二、顯著特點/Advantages and characteristics
1、高效率：本機是現有V槽機速度的2-3倍，操作簡單，僅需一人可完成整機操作；

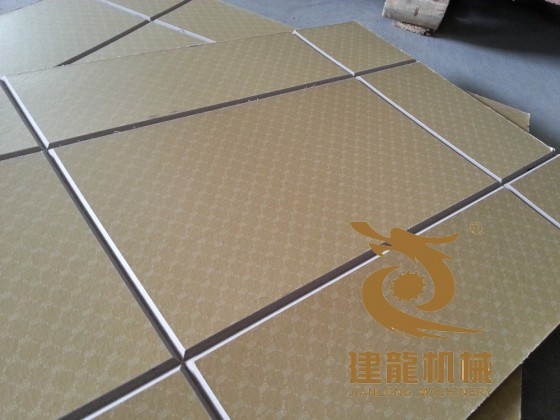

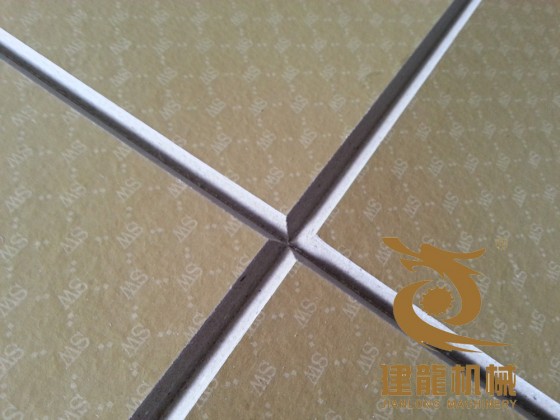

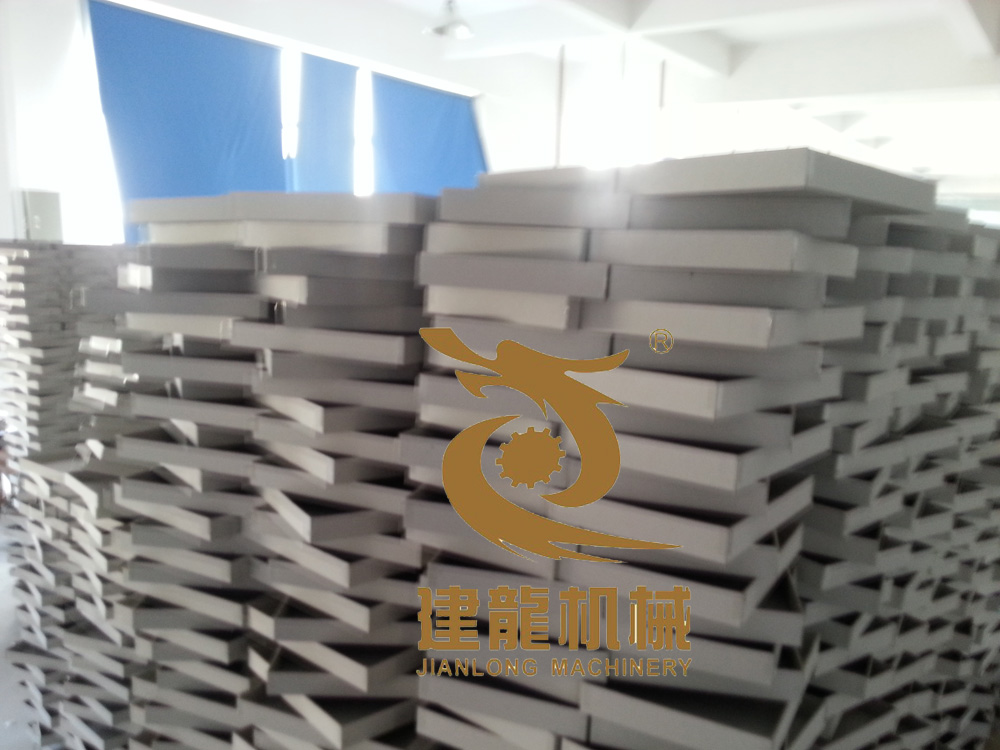

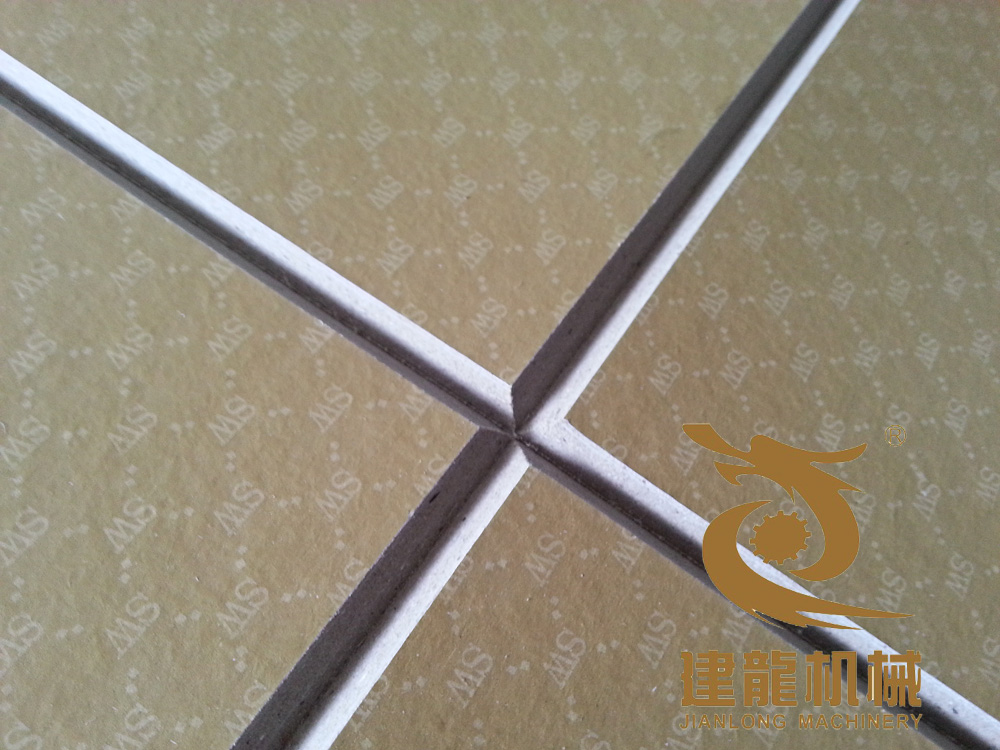

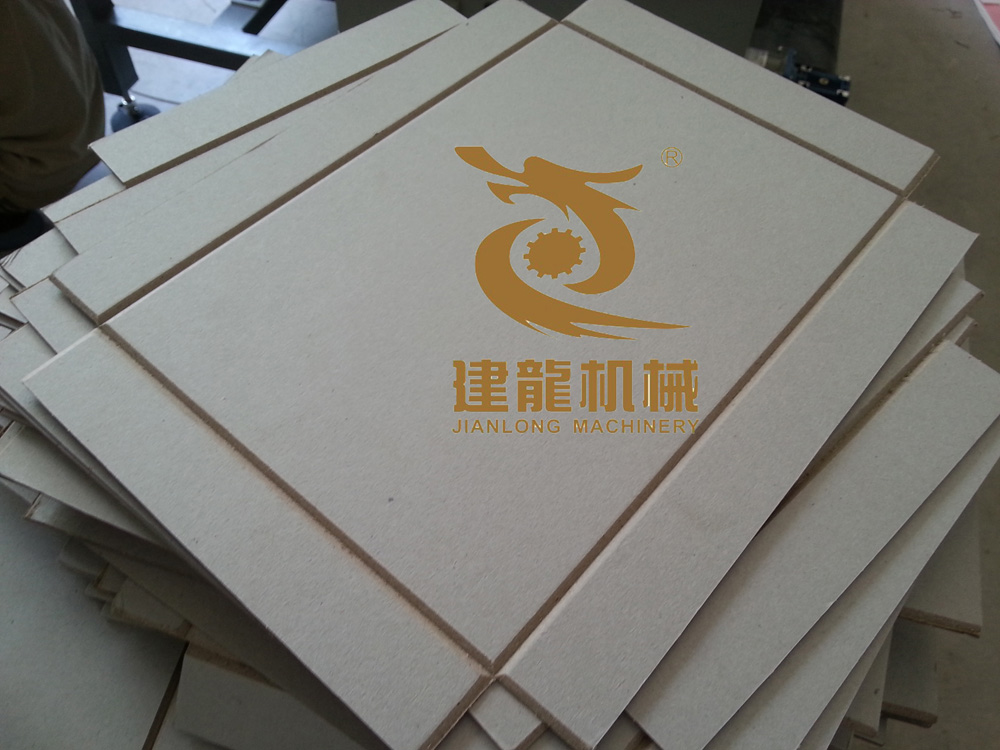

2、開槽效果：V槽表面光滑，槽距及角度精確。沒有毛邊，生產天地蓋及皮殼板首選。
3、快速調刀：角度70-140度手柄任意調節，深度任意調節。
4、刀具耐用：采用進口特級鎢鋼材料，紙板、中纖板均可開槽。
5、環保：作業時沒有噪音，沒有灰塵，V槽的廢料整條回收。
6、節能：整機功率僅為1.5KW，老式V槽機功率為13KW左右，降低了生產能耗。
1.High efficiency: The speed of this machine is 2-3 times as fast as existing device. It’s easy to operate and only one operator is needed.
2.Slot effect: No rough edges .The surface of V-shaped groove is smooth and groove spacing and the angle is accurate. It’s the first choice of top and bottom cover and leathered cover board.
3.Adjust blade fast: The handle can adjust the depth and angle of 70 to 140 degrees freely.
4.Durable blade: Using imported tungsten steel chip, it can slot paperboard and MDF.
5.Environmental protection: No noise, no dust and waste recycling totally.
6.Energy saving: The total power is just 1.5kw reducing the production energy, but the old mathine is 13kw.
三、技術參數/Technical Parameters
型號 Model
JL-1200A
外型尺寸Dimension
L1500*W1150*H1350mm
整機總量 Weight
約1200Kg
需要馬力 Power
1.5Kw/380V
紙板厚度The ckness of cardboard
200g-4.0mm
加工紙板寬度 Max.Processing width
80-1000mm
加工紙板長度 Length of cardboard
100mm-無限制
開槽條數 Slotted number
8 slots
開槽角度 Grooving degree
70-140度大小可調
開槽速度 Producting speed
10-35m/min
開槽間距 Distance of each groove
0-900mm
